* This 14 inch bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.


Main Features:
>. Hub: Ø271mm Aluminum casted (Hub Fit For: 14 × 2.1/4 or 2.5" tire)
>. Engine: 14 inch bike motor

>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 35.7kmh -- 22.1mph
>>. Mechanical brake: Disk or  V
>>. Cable location: shaft end, LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm front fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: black color motor controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

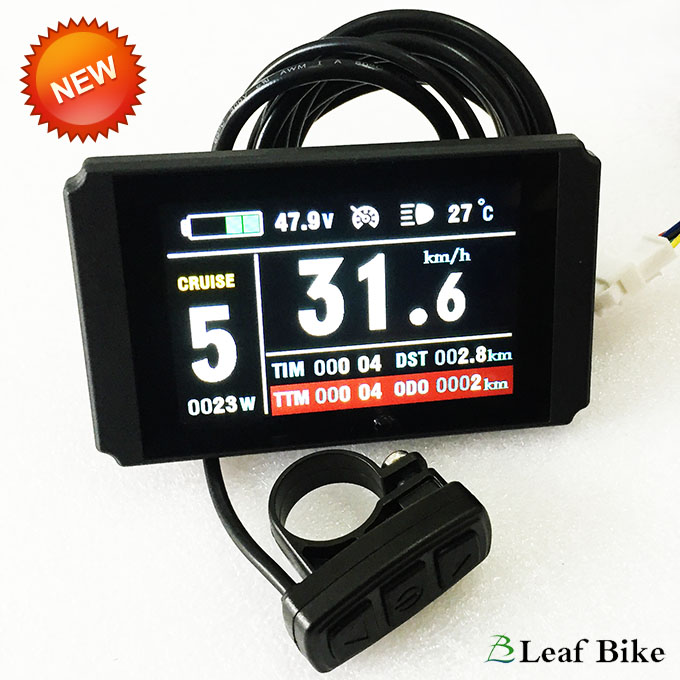

LCD-008HU With USB Port & Color screen, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* Temperature
* Motor power
* Timer
* Battery gauge
* ...

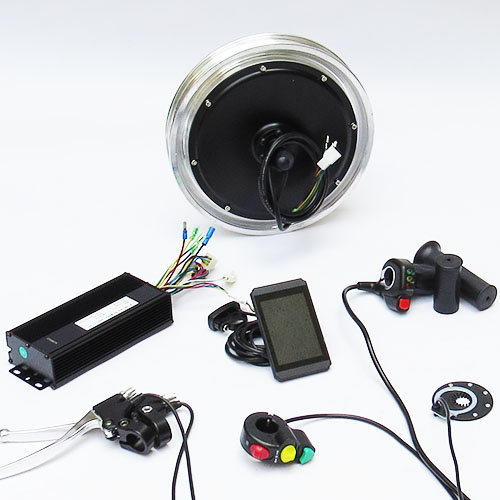

Package Content:

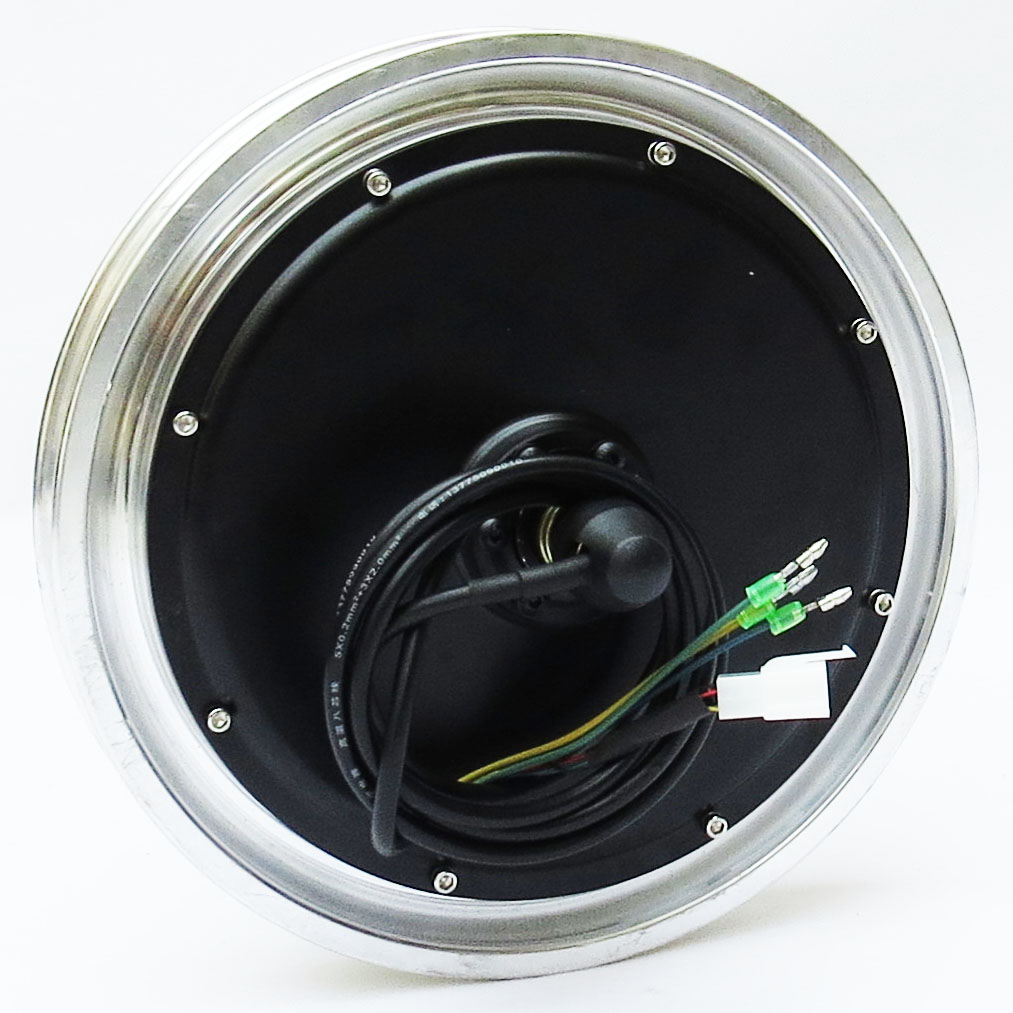

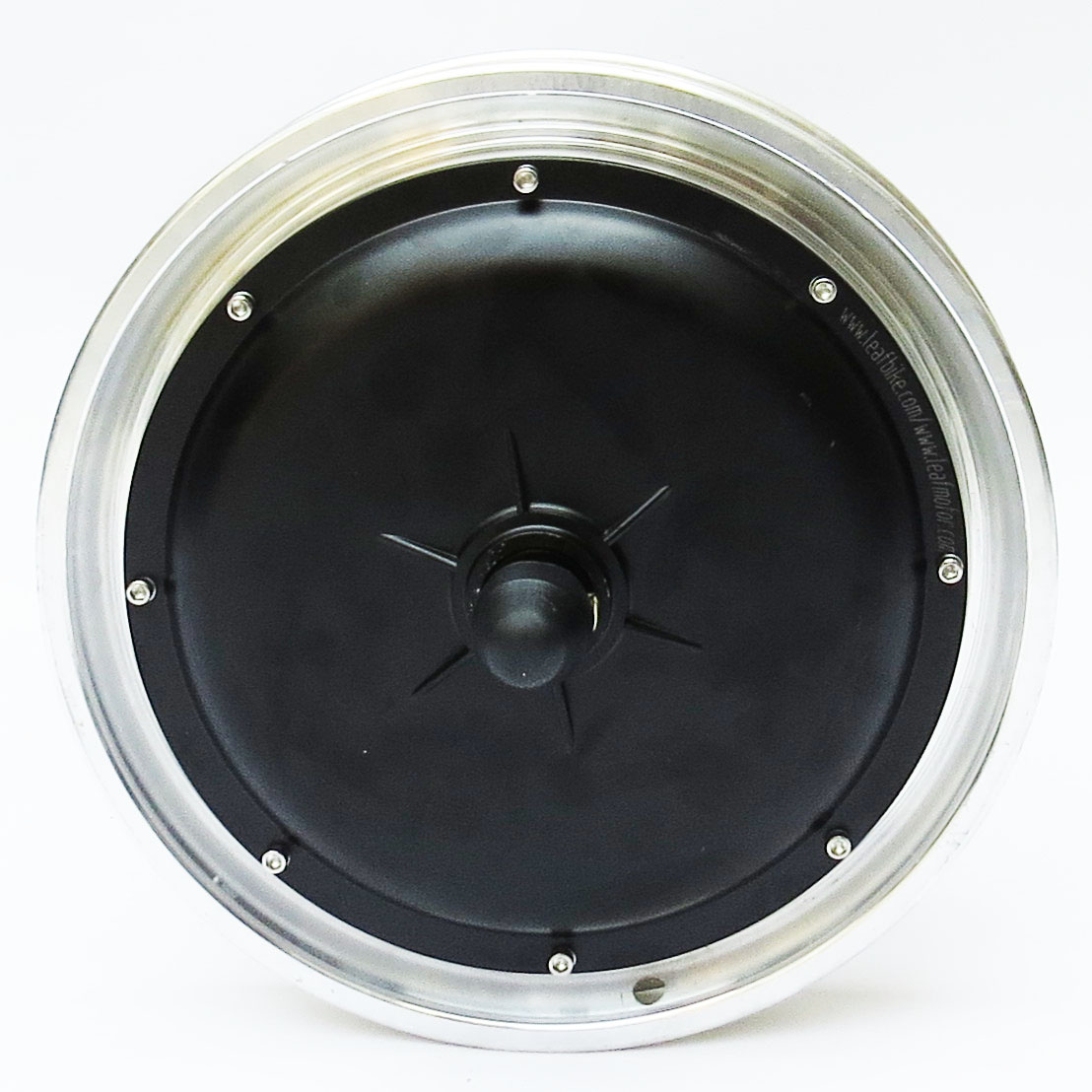

1 x 14 inch 36V 750W front casted hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD-008HU With USB Port & Color screen

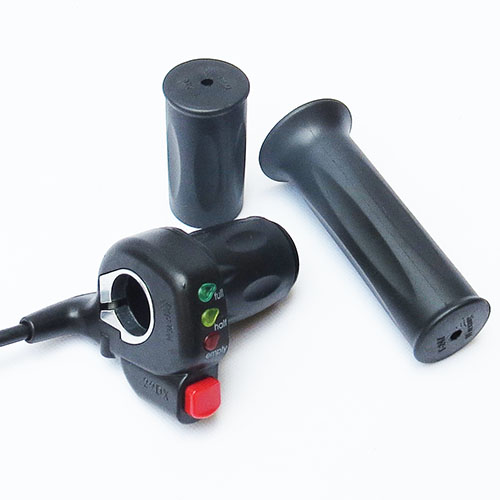

1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, regen brake, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 1000mm

Net Weight: 9.0 kg   /  19.8 lbs
Package Size: 46cm L x 46cm W x 25cm H
Package Type: Cardboard Box

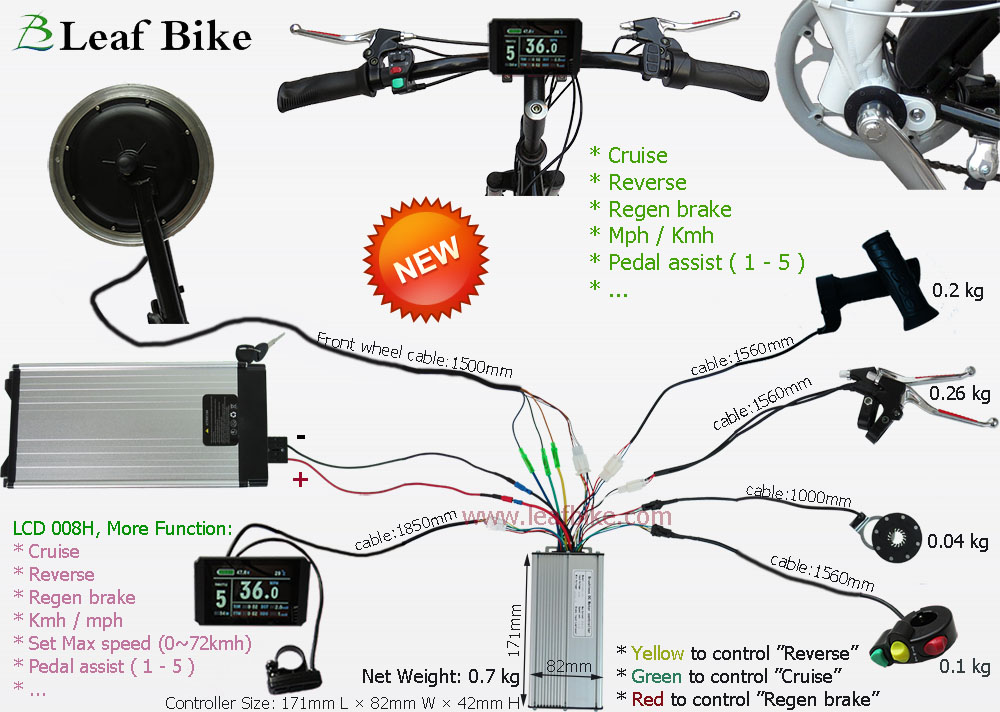

Share Video:	Wire Diagram:	14 inch front hub motor Drw.	Performance Data:
