* This 18 inch bike motor kit system handle a 48V / 52V battery (From Min 40V....47V,48V,49V,50V,51V,52V,53V,54V,55V.... ~ Max 60V DC).

Main Features:
Hub: Ø371mm Casted Alloy (Hub Fit For: 18 × 2.125" / 2.5" tire)
Motor Type: electric scooter motor
Controller: LCD display
Max speed: 63.7 kmh -- 39.6 mph
Mechanical brake: V or Disk
Install: spacing of 100mm fork

LCD-S830, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest ~ "5" is the fastest.
* Battery gauge
* ...

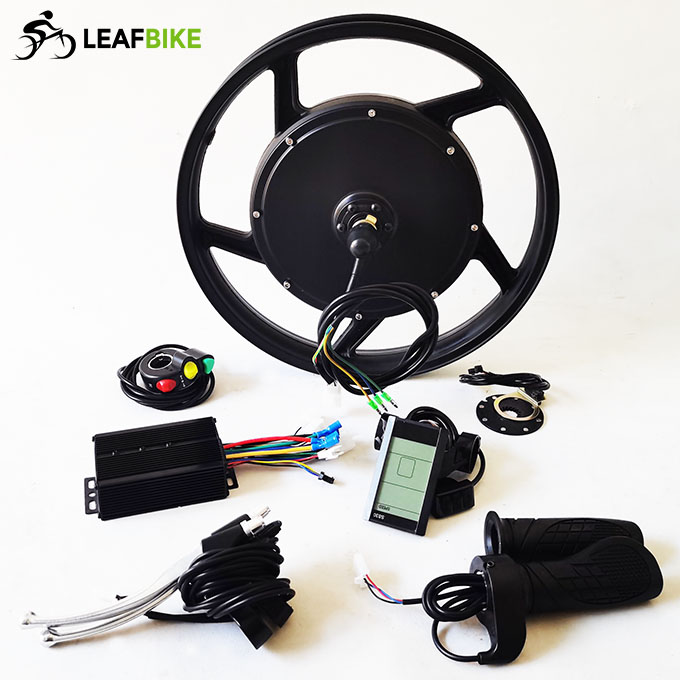

Package Content:

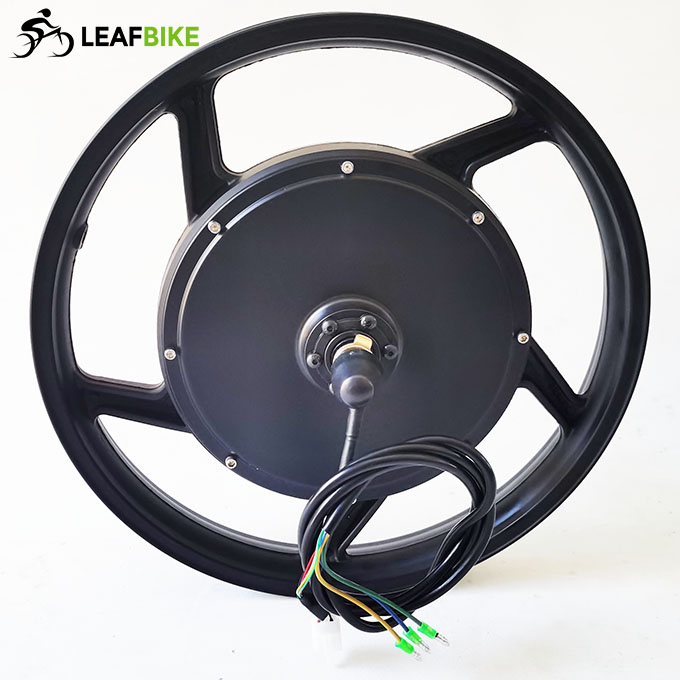

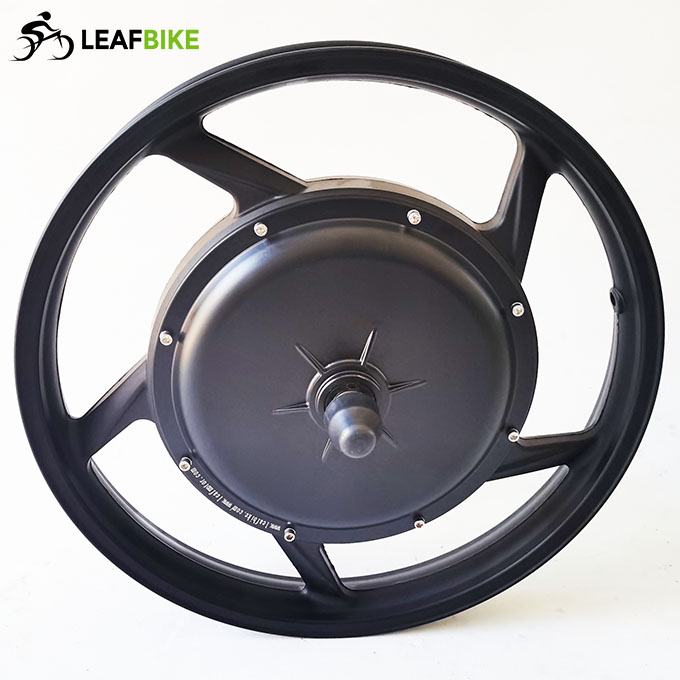

1 x 18 inch 48V 52V 1000W front hub motor wheel

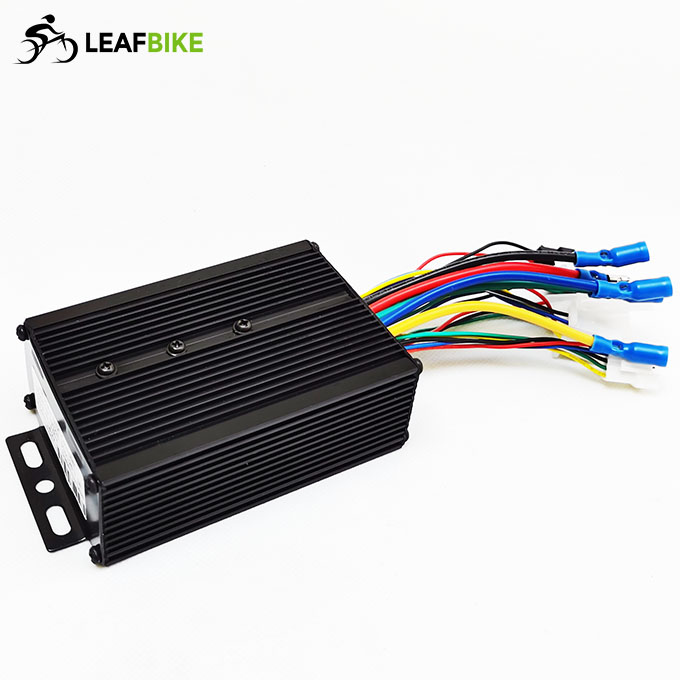

1 x 48V 52V 1000W 12-MOSFET motor controller

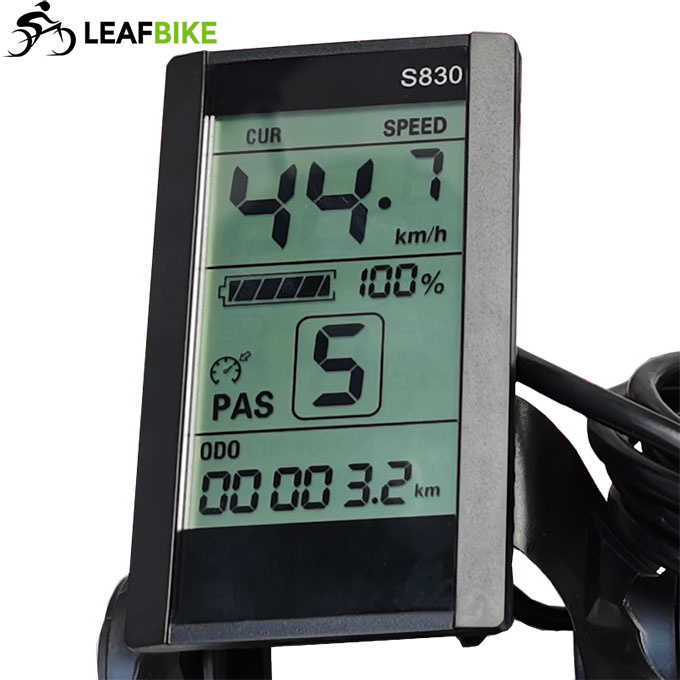

1 x LCD-S830
1 x Twist throttle
1 x Brake lever
1 x Three button switches ( control cruise, reverse .. )
1 x Pedal assist

Net Weight: 9.05 kg   /    Gross Weight: 10.25 kg
Package Size: 46cm L x 46cm W x 31cm H
Package Type: Cardboard Box

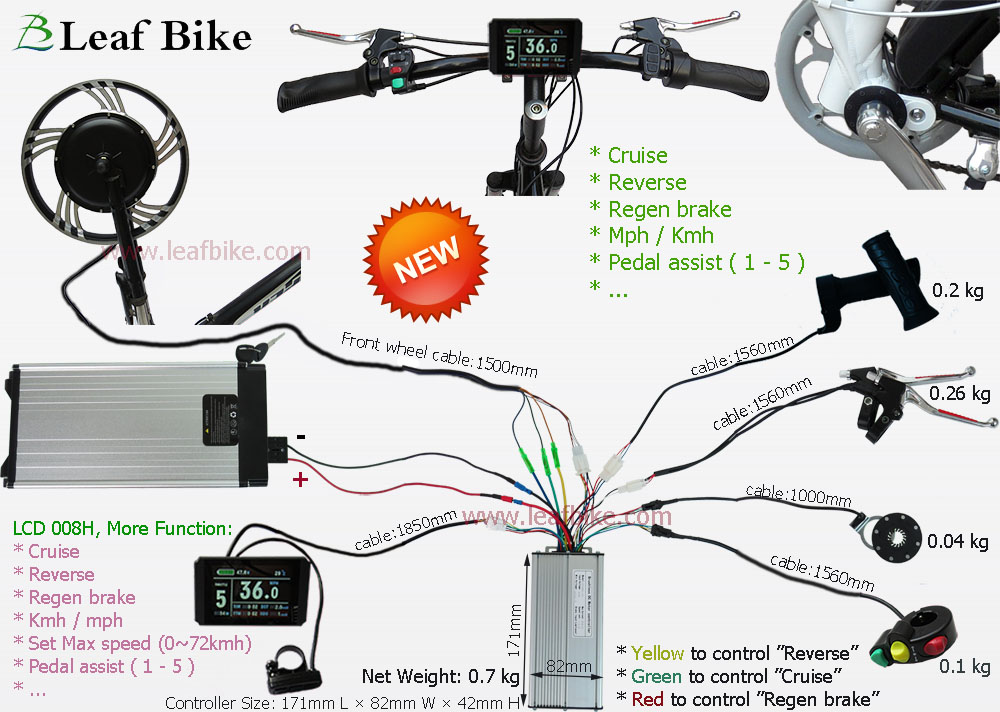

Share Video:	Diagram:	Motor Drw.	Performance:
