* This 24 inch bike motor combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

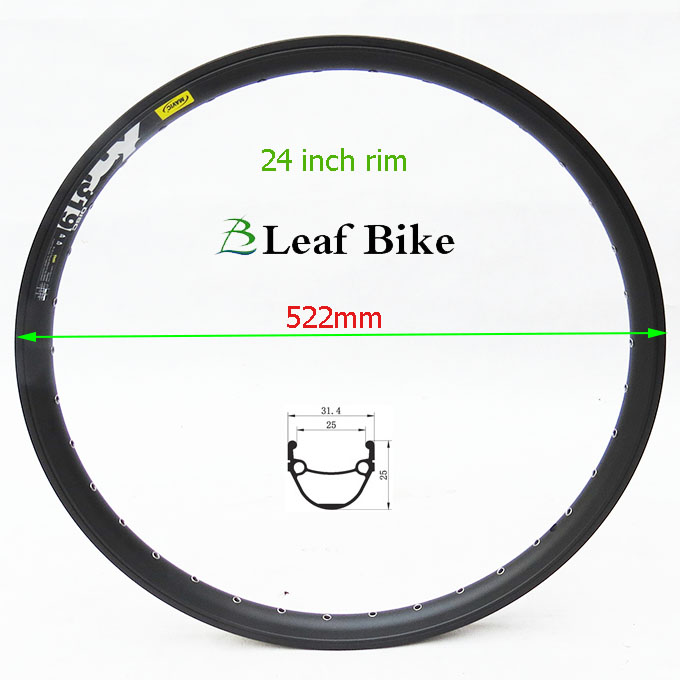

>. Rim: 24 inch double wall Alloy ( tire: 24 × 1.95"  / 2.0" ~ 2.5" )
>. Spoke: Black color 12 gauge / 131mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 48V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 55.9 kmh -- 34.3mph
>>. Mechanical brake: Disk or  V
>>. Freewheel: max 7 speed
>>. Cable length:100cm / 40"  -- Update “3mm phase wires” & "Newest version hub"
>>. Install: spacing of 135mm rear fork
>>. Noise: < 60 db
>>. Surface: Black painted

Package Content:

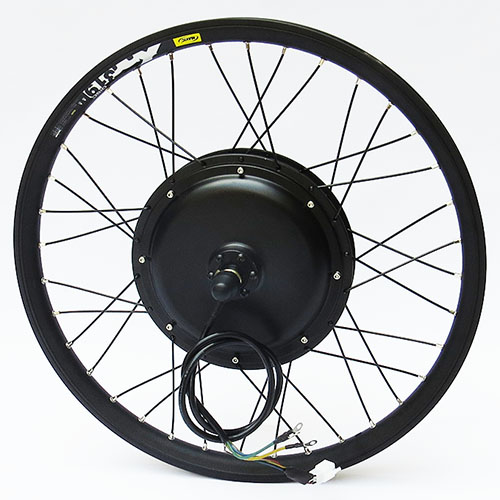

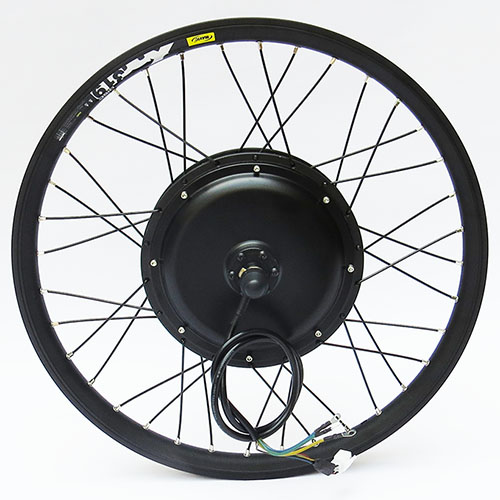

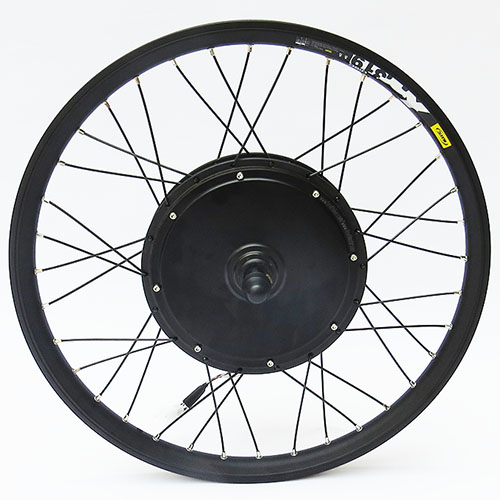

1 x 24 inch 48V 1500W rear bike motor wheel

Net Weight: 7.9 kg   /  17.6 lbs
Package Size: 56cm L x 56cm W x 25cm H
Package Type: Cardboard Box

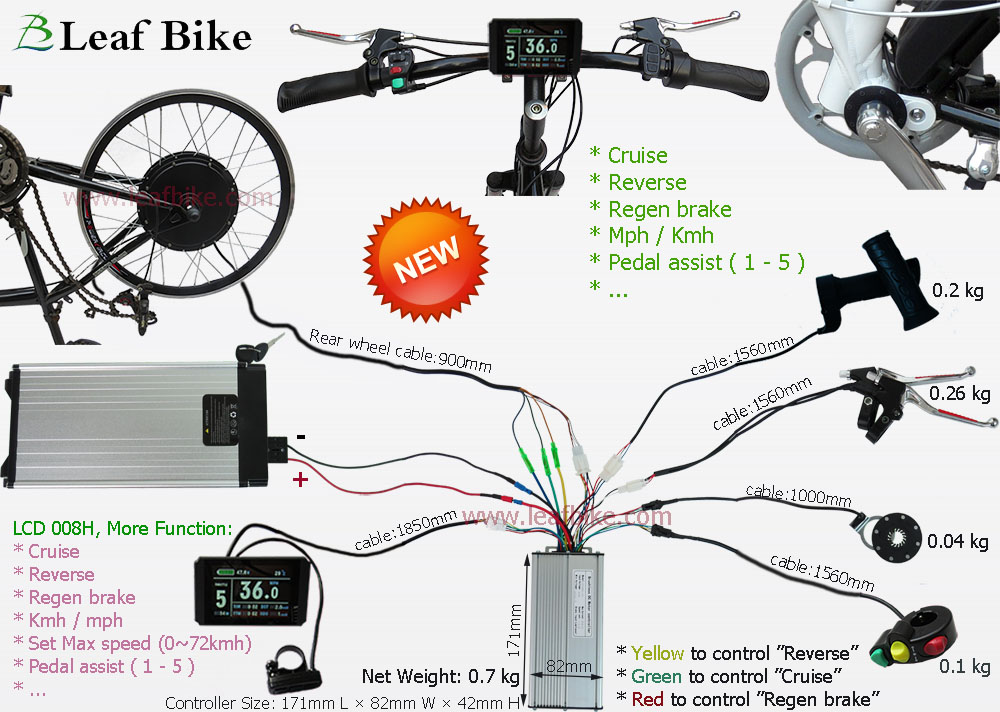

Share Video:	Wire Diagram:	Performance Data:
