The 29 inch bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque Bike Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
This 29 inch bike conversion kit works with a 60V battery.

Main Features:
>. Rim: 29 inch double wall Alloy (Rim Fit For: 29 x 1.95" ~ 2.5" tire)
>. Spoke: Black color 12 gauge / 189mm Length x 36 pcs
>. Default: Black spokes
>. Optional: Silver spokes -- Please leave message.

>. Engine: Bldc electric hub motor
>>. Voltage: 60V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 50 mph
>>. Mechanical brake: V
>>. Cable location: Shaft end, LEFT
>>. Cable length: 150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

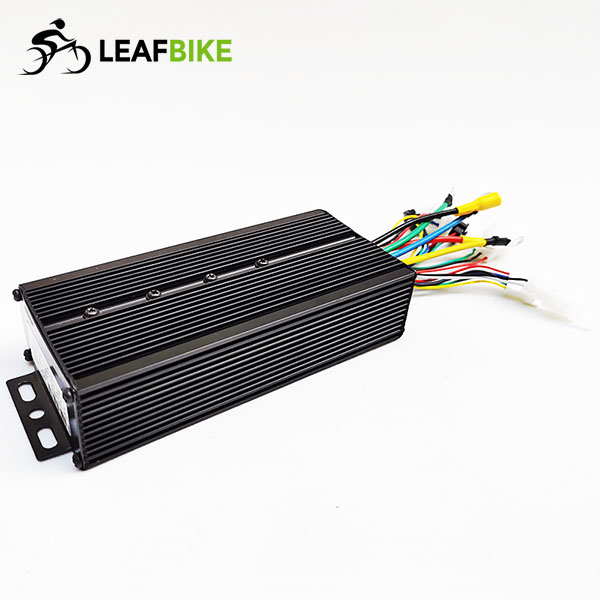

>. Driver: Brushless Sine Wave Motor Controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 52.5 V
>>. Rated power: 2000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L x 72 mm W x 38 mm H

With LCD, More Function:
* Cruise
* Reverse
* Kmh / mph
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest speed ~ "5" is the fastest speed.
* ..

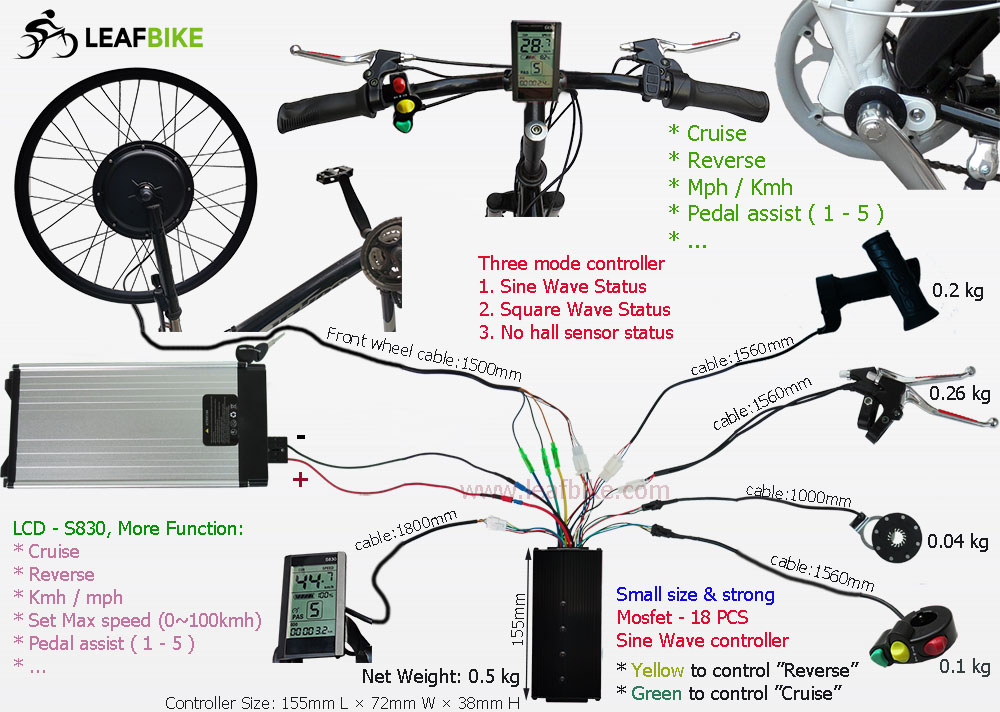

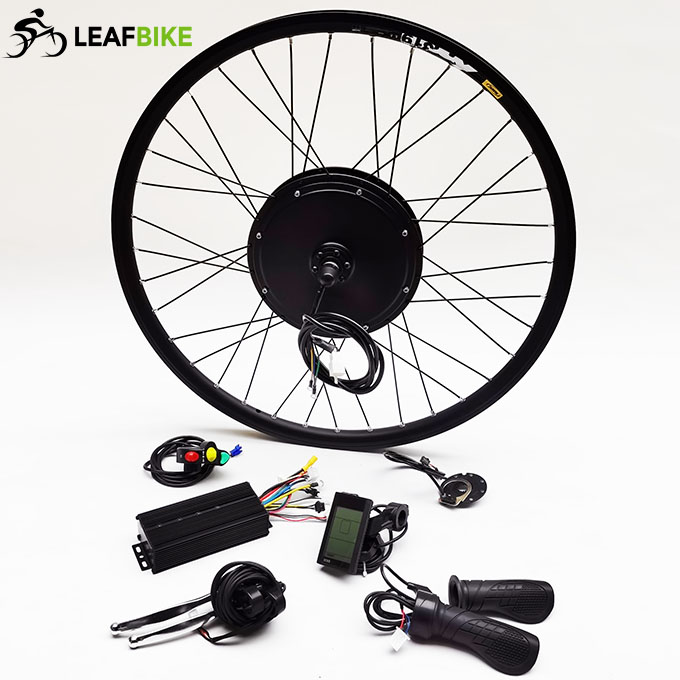

Package Content:

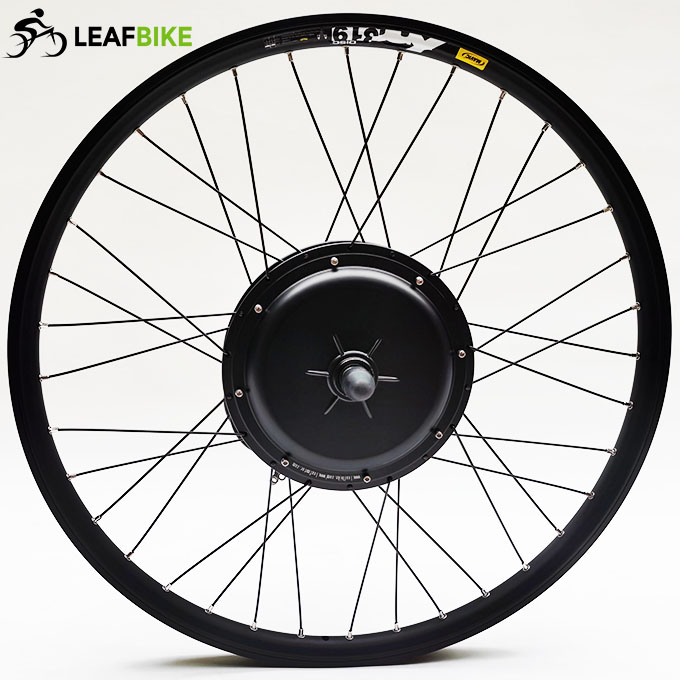

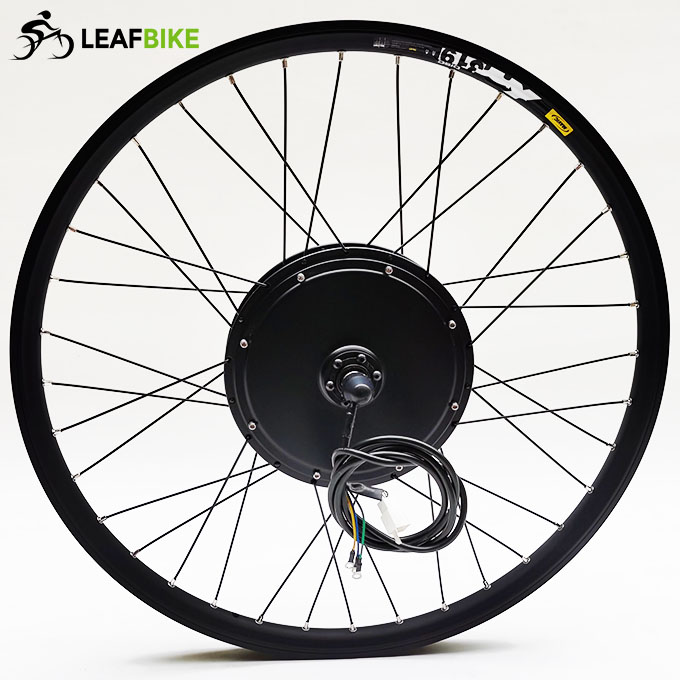

1 x 29 inch 60V 2000W front hub motor wheel
1 x 60V 2000W sine wave motor controller

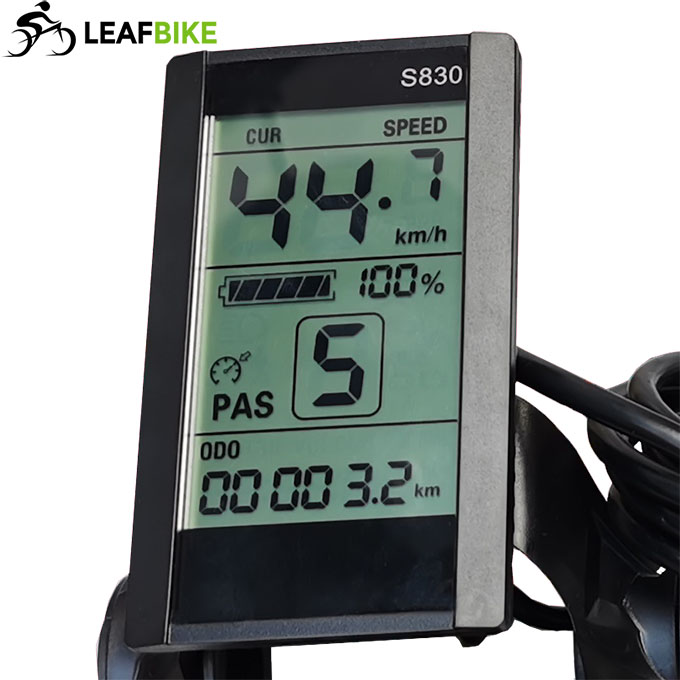

1 x LCD -- Cable length: 1500mm
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.7 kg
Package Size: 66cm L x 66cm W x 23cm H
Package Type: Cardboard Box

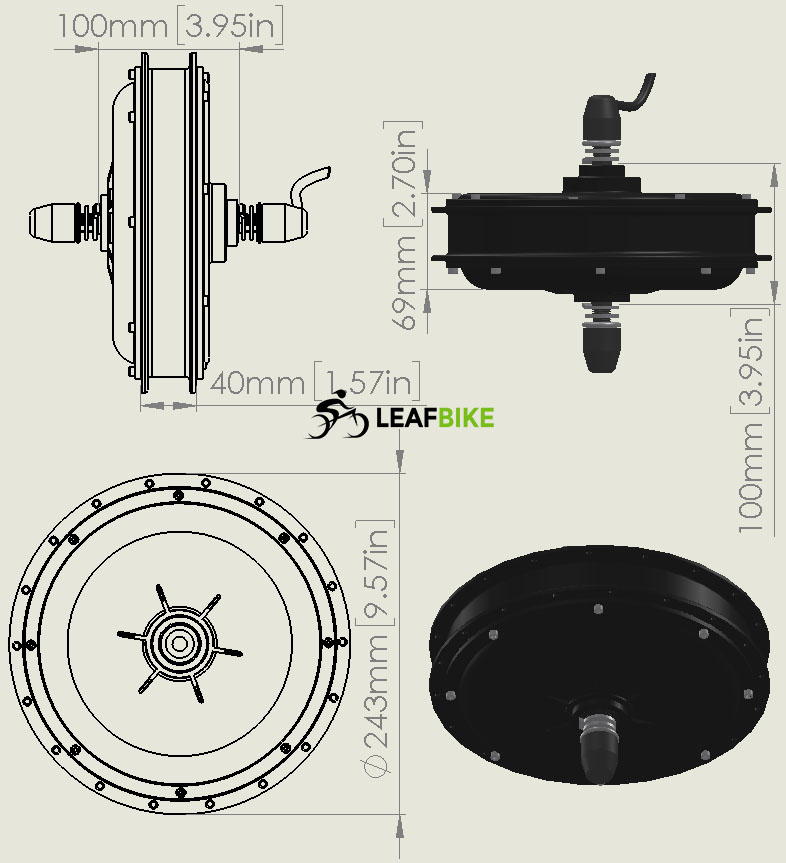

Diagram:	Motor Drw.
