Triangle 48V 20Ah

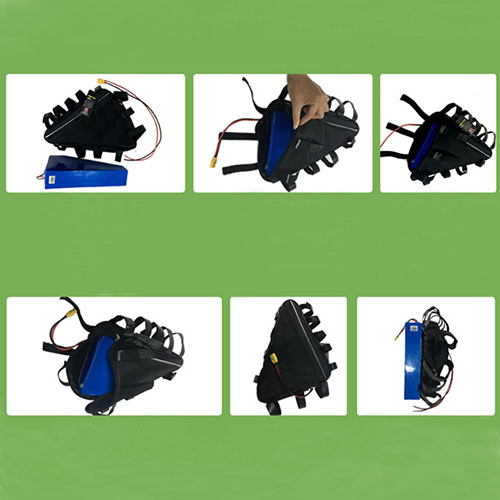

Lithium battery with BMS/Charger. It's easy to fix on your bike frame.
* BMS(BATTERY MANAGEMENT SYSTEM) and 100V~240VAC 50/60Hz 3A Universal Charger Included
| * Nominal Voltage (V): |
48 |
| * Nominal Capacity (Ah): |
20 |
| * Source Resistance (mΩ): |
40 |
| * Cell Combination: |
2-parallels |
| 13-series |
| *Cell Quantity (parallel*series): |
26 |
| * Discharge Cut off Voltage (V): |
40 |
| * Charge Cut off Voltage (V): |
54.6 |
| * Max Discharge Current (A): |
50 |
| * Max Continuous Discharge Current (A): |
30 |
| * Charge Mode: |
CC-CV |
| * Standard Charge Current (A): |
3 |
| * Charge Time under Standard Charge Current |
6~8 hours |
| * Charge Temperature Range: |
-20-55℃ |
| * Discharge Temperature Range: |
-20-55℃ |
| * Charging Cycles: |
>1500 times |
| * Dimensions: |

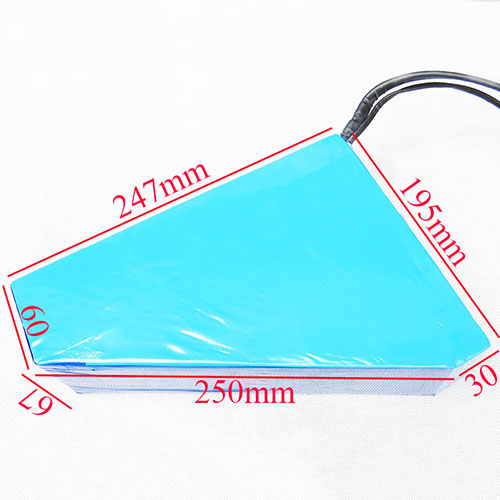

247×195×250×30×60×67mm |
| * Battery Net Weight: |
4.75 kgs |
| * Battery Gross Weight(with charger): |
5.1 kgs |
Package Content:

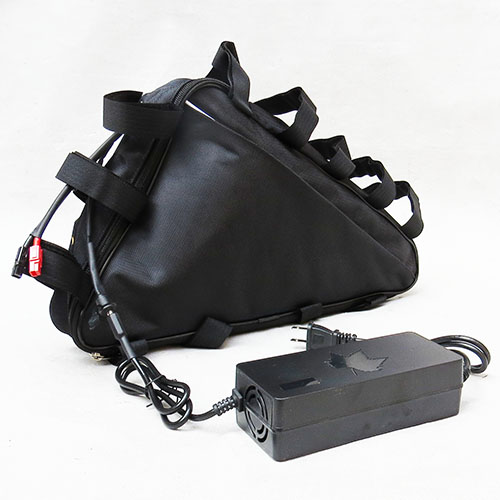

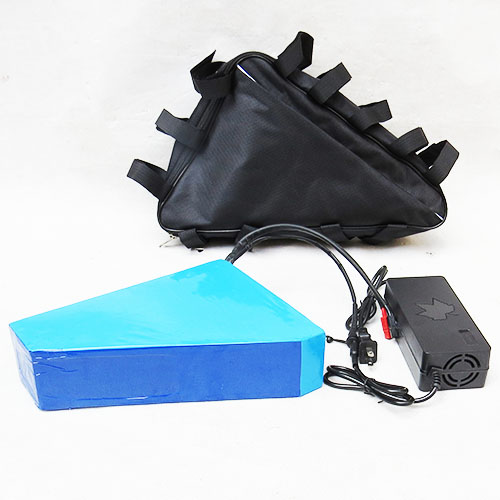

1 x 48V 20AH 1500W electric bike battery - triangle battery
1 x 48V 110V~240VAC 50/60Hz 3A charger
Gross weight: 7Kg (after packing with charger)
Package Size: 40cm L x 23cm W x 13cm H
Package Type: Cardboard Box
