* This hub motor system handle a 48V / 52V battery (From Min 40V....47V,48V,49V,50V,51V,52V,53V,54V,55V.... ~ Max 60V DC).

Detail:

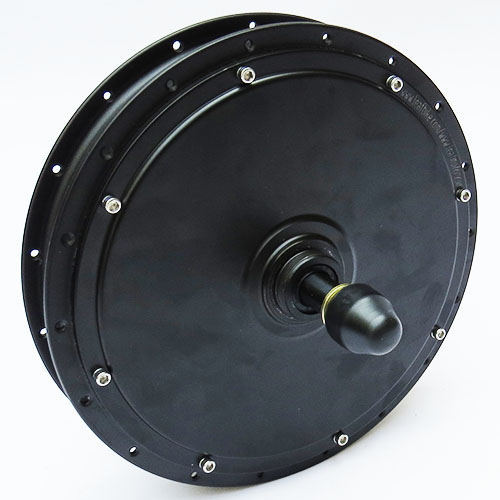

Motor type: spoke hub motor
Voltage: 48V / 52V
Power: 1500W
Max efficiency: 90.5%
RPM: 600
Mechanical brake: Disk or V

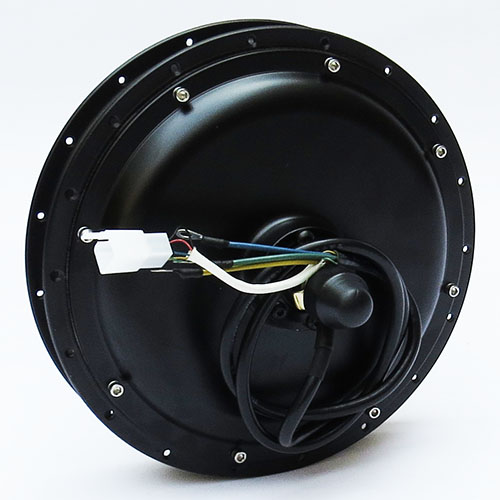

Cable location: shaft end, Left
Cable length:100cm / 40"
Install: spacing of 135mm rear fork
Noise: < 60 db
Surface: Black painted
Net weight: 7.35kg / 16.2 lbs
Gross weight: 8.1 kg ( after packing )

Package Content:
1 x 48V 52V 1500W rear spoke hub motor

Package Size: 28cm L x 25cm W x 30cm H
Package Type: Cardboard Box



Rear hub motor Drw.	Performance Data:
